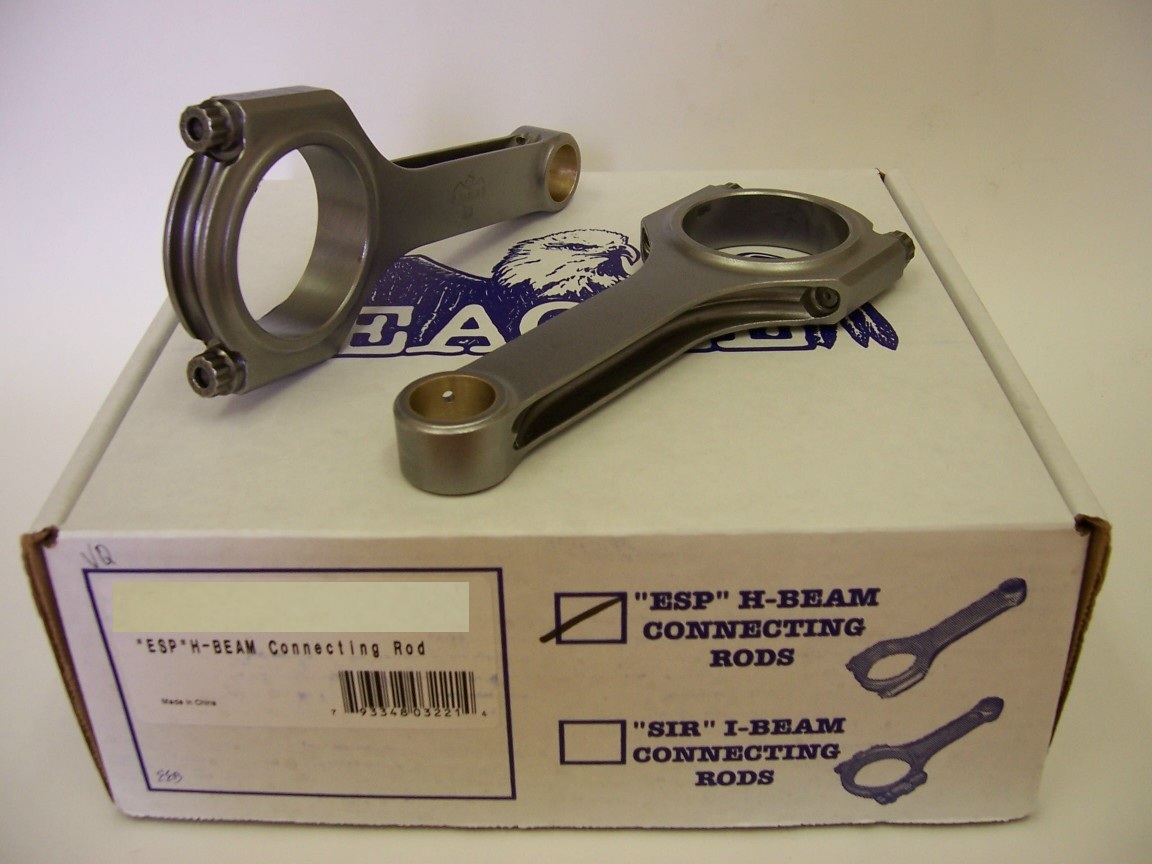

Eagle CRS5428T3D ESP 4340 Forged H-Beam Connecting Rods Toyota 3SGTE

Eagle CRS5428T3D ESP 4340 Forged H-Beam Connecting Rods Toyota 3SGTE

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.

Specifications:

• Fasteners: 3/8" ARP 2000
• Torque: 43 ftlbs with ARP moly lube on threads
• Pin fit: Bushed
• Recommended up to 900 HP

Dimensions:

• Length: 5.428 in.
• Rod journal: 1.889 in.
• Housing bore: 2.0080 in.
• Pin size: 0.866 in.
• Big end width: 1.0550 in.
• Pin end width: 1.0550 in.
• Thickness above pin: 0.205 in.
• Typical weight: 555g

Notes: Standard rod for 3SGE, 3SGTE. Older design used 5/16" bolt (3/8" head) - torque is 28 ftlbs with moly lube.
