Eagle CRS5400C3D ESP 4340 Forged H-Beam Connecting Rods Ford 302

Eagle CRS5400C3D ESP 4340 Forged H-Beam Connecting Rods Ford 302

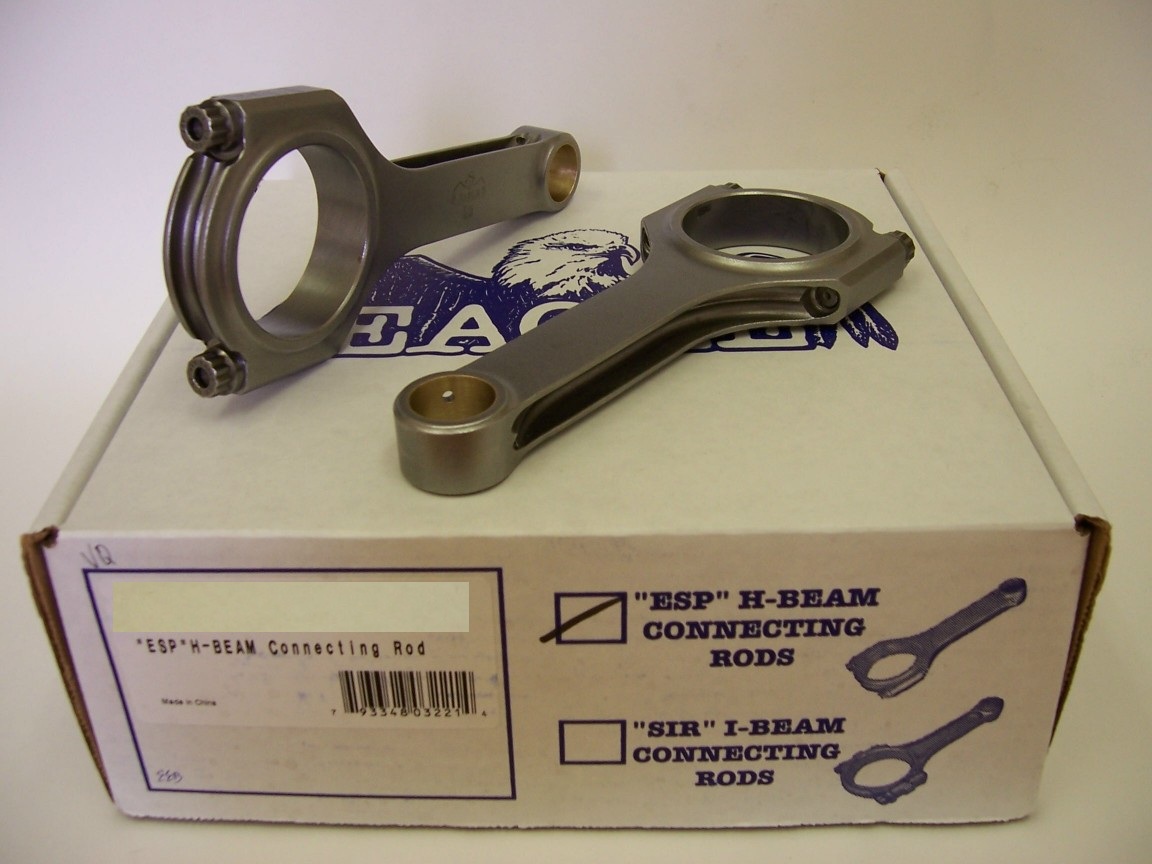

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.

Specifications:

• Fasteners: 7/16"" ARP 8740
• Torque: 63 ftlbs with ARP moly lube on threads
• Pin fit: Bushed
• Recommended up to 750 HP

Dimensions:

• Length: 5.400 in.
• Rod journal: 2.100 in.
• Housing bore: 2.2500 in.
• Pin size: 0.927 in.
• Big end width: 0.8310 in.
• Pin end width: 1.0600 in.
• Thickness above pin: 0.195 in.
• Typical weight: 580g

Notes: 302 stroker.
