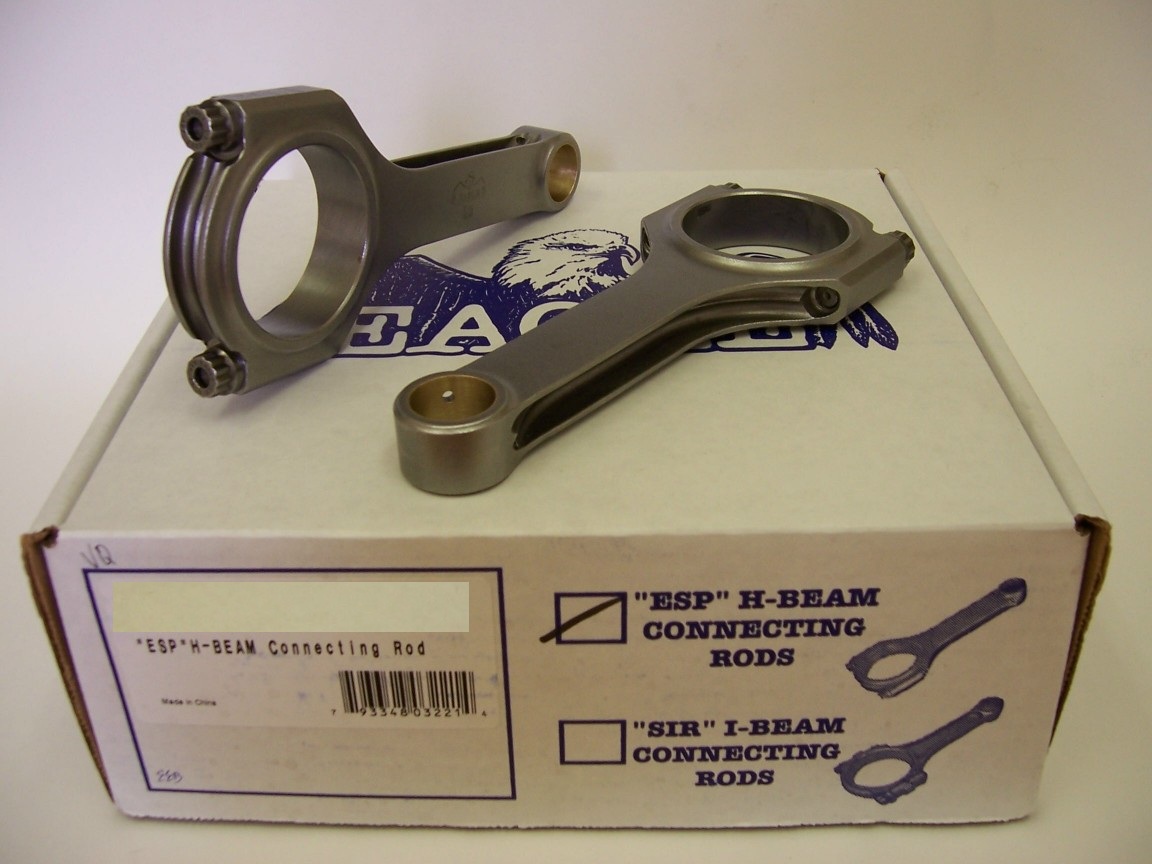

Eagle CRS5290H3D ESP 4340 Forged H-Beam Connecting Rods Honda B16

Eagle CRS5290H3D ESP 4340 Forged H-Beam Connecting Rods Honda B16

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.

Specifications:

• Fasteners: 3/8" ARP 2000
• Torque: 43 ftlbs with ARP moly lube on threads
• Pin fit: Bushed
• Recommended up to 900 HP

Dimensions:

• Length: 5.290 in.
• Rod journal: 1.771 in.
• Housing bore: 1.8900 in.
• Pin size: 0.826 in.
• Big end width: 0.9350 in.
• Pin end width: 0.7850 in.
• Thickness above pin: 0.200 in.
• Typical weight: 525g

Notes: standard length rod for all B16 engines except JDM B16B. Older design used 5/16" bolt (3/8" head) - torque is 28 ftlbs with moly lube.
