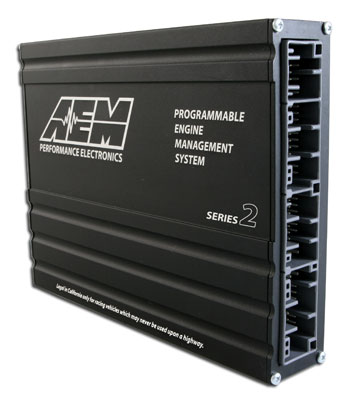

AEM 30-6052 Series 2 Plug & Play Engine Management System 00-05 Honda S2000 2.2L VTEC

AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS for the S2K allows you to control every aspect of your F20 & F22. From VTEC to rev limit, timing, bigger injectors, boost control, nitrous injection, individual cylinder fuel and timing trims and for you drag racers there's even anti-lag! The Series 2 for the S2000 even lets you keep the stock coolant temperature gauge. Get total control for your S2000 with the Series 2 from our new tuning software - AEM Tuner.

Outputs:

• Injector Outputs: 12 Saturated
• Coil Outputs: 4
• Selectable direct drive or 0-5V Coil Output: Yes
• Direct plug in, no jumper harness required: Yes
• General purpose LS outputs: 12
• General purpose HS outputs: 4
• Individual cylinder ignition trims: Yes
• Individual cylinder fuel trims: Yes

Inputs:

• Trigger inputs (Ref/Sync): 4
• Analog voltage inputs: 23
• Configurable Analog/RTD/Thermister inputs: 4
• Switch inputs: 5
• Lambda inputs: 2x
• Knock sensors: 2
• User adjustable knock sensor center frequency: Yes

Communication:

• USB comms: Yes
• RS232 comms: Yes
• Communication cables included: Yes
• Fully enabled editing/logging software included: Yes
• CAN bus equipped: Yes
• RS232 datastream output: 19 ch
• CAN datastream output: 19 ch
• Communicates with AIM Dash/Dataloggers: Yes
• Communicates with Racepak Dash/Dataloggers: Yes

Data Acquisition

• Internal data logging: 1 MB
• Maximum internal logging rate (per channel): 250 Hz
• PC logging: Yes
• Data analysis using AEMLog: Yes

Functions and Features:

• All channels/maps/tuning options unlocked: Yes
• Boost control: Yes
• Groundspeed based boost target: Yes
• Nitrous injection: Yes
• Staged injection: Yes
• Ground speed limiting: Yes
• Rate of Acceleration Control: Yes
• Overrun boost enhancement (anti-lag): Yes
• Gear change ignition cut (shift-without-lift): Yes
• Password protected calibrations: Yes
• Fuel & Ignition rev limiters: Yes
• "In cockpit" global fuel trim capability: Yes
• Gear dependent shift light: Yes
• Evap/Purge function: Yes
• DC Motor control: 2 Ch
• Software definable "virtual" switch inputs: 2
• EGT Based fuel trims: Yes
• Maximum boost limit: None
• Stock S2000 coolant gauge support: Yes
• Transmission: Manual only

Physical Dimensions:

• Length: 192 mm
• With: 150 mm
• Height: 37 mm
• Finish: Black Anodized

Applications:

• 00-03 Honda S2000 2.0L VTEC
• 04-05 Honda S2000 2.0L VTEC

AEM Series 2 Plug-N-Play Engine Management Systems

Legal in California only for racing vehicles which may never be used upon a highway.
