AEM 30-2131-30 2 BAR MAP Sensor 30 PSIA Brass Sensor Kit Universal

AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a three- wire mating connector with 12" leads for ease of installation.

Features:

• High-quality sealed sensor housings
• Mating connector and 12” leads included (sensors)
• Accurate and affordable

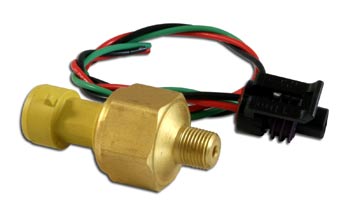

2 bar map or 30 PSIA Brass sensor kit. Brass body with 1/8-NPT male thread. Includes -4 adaptor, barb adaptor, connector plug with flying lead & sensor.

Sensor Performance Specifications:

• Accuracy: +/- 3% Full Scale
• Temp Drift: +/- 3% Full Scale
• Zero Stability: <3% Full Scale/Year
• Operating Temp: -4F to 221F / -20C to 105C
• Burst Pressure: 2 x Full Scale
• Response Time: < 1mS
• Wetted Materials: 304L & 316L Stainless Steel
• Vibration: 20G’s peak to peak sinusoidal
• Weight: <85g
• Supply Current: 5mA MAX. at 5 Vdc
• Elec. Termination: Integral weatherproof connector, includes mating connector with 12” leads, 1Red (Supply Voltage, 4.7-7.0 Vdc), Black (Ground), Green (Output)
