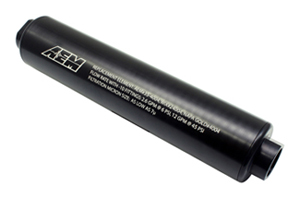

AEM 25-201BK Universal High Flow -10 AN Inline Fuel Filter

AEM 25-201BK Universal High Flow -10 AN Inline Fuel Filter

The AEM High Flow -10 AN Inline Fuel Filter is CNC machined from 6061-T6 Aluminum and Hard Anodized Black. AEM’s engineers designed this filter with the racer in mind and with the intention of maximizing flow, filtration and ease of installation. The end caps are machined with -10AN female fittings with o-ring receiver groove that allow the filter to flow up to an astonishing 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI. All sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels. The commonly available replacement filter cartridges filter as low as 7 microns. The standard 2” OD allows for easy mounting virtually anywhere in the vehicle.

Features:

• Machined from 6061-T6 aluminum and hard anodized black
• Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI with -10 port fittings
• Filters as low as 7 microns
• Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels
• End caps are machined with -10 AN female fittings with o-ring receiver groove
• End caps have pressure intensifiers for greater sealing of end gaskets
• 2” OD x 10” length for easy mounting
• Commonly available replacement filter cartridges
• Laser etched with AEM logo, flow and filter replacement information
