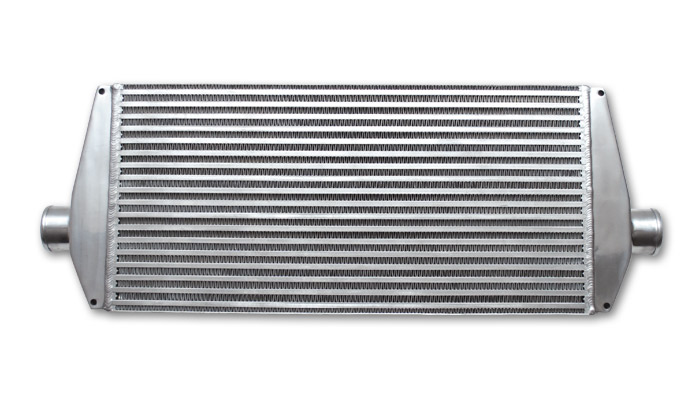

Vibrant 12816 Air-to-Air Intercooler with End Tanks

Vibrant 12816 Air-to-Air Intercooler with End Tanks

Vibrant Bar and Plate Intercoolers are designed and built to provide superior cooling efficiency and overall durability compared to tube and fin style intercoolers, resulting in these cores being suitable for even the most extreme racing conditions.

Dimensions:

• Core Width: 27" (Overall Width with End Tanks is 33")
• Core Height: 12"
• Core Thickness: 3.50"
• Inlet Diameter: 2.50"
• Outlet Diameter: 2.50"
• Inlet/Outlet Neck Location: Offset

Specifications:

• Approx. Flow Rate for this intercooler: 1200 CFM at 1.5PSi pressure drop
• Approx. HP Rating for this intercooler: 875 HP
• Material: Aluminum, Bar and Plate Construction
• Warranty: One Year Limited Warranty
