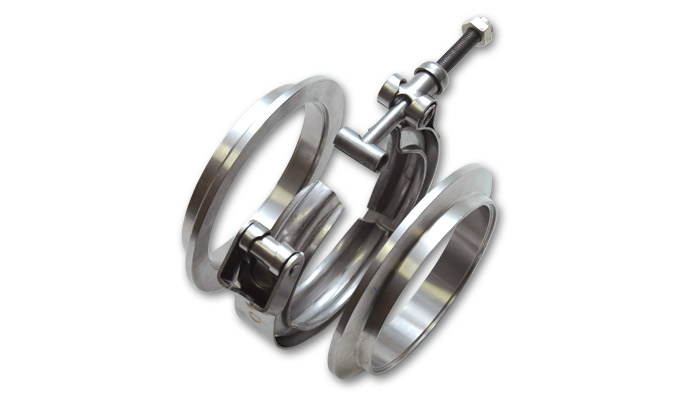

Vibrant 11493 Aluminum V-Band Flange Assembly For 4" O.D. Tubing

Vibrant 11493 Aluminum V-Band Flange Assembly For 4" O.D. Tubing

V-Band Flange Assemblies are a popular and effective alternative to traditional flanged or slip fit tube connections. They work very well in operating conditions involving stress, vibration and extreme temperature fluctuations. The V-band clamp design allows for a gasket free seal and the quick release feature of these clamps makes swapping parts at the track quick and easy. Vibrant Performance V-band flange assemblies feature a unique "Male/Female" design to ensure proper alignment of the flanges inside the clamp. Each assembly consists of two (2) V-Band flanges, one (1) pressure seal Viton O-Ring and one (1) Quick Release V-Band clamp. Stainless Steel V-Band flange assembly for 4" OD tubing (Part #1493) also available.

Specifications:

• Aluminum V-Band Flange Assembly For 4" O.D. Tubing
• Material: T6061 Billet Aluminum Flanges, S.S. Clamp, Viton O-Ring
• Warranty: One Year Limited Warranty
